Custom Spur Gears with Rectangular Spline 220-260 HB Hardness

1) Description of Spur Gear

Spur gears are cylindrical gears with teeth parallel to the axis, and the teeth are distributed along the busbar direction of the cylinder,

which is one of the most basic and common types of gear transmission.

2) Feature of Spur Gear

The structure is simple, the difficulty of tooth processing is low, and it is easy to understand and manufacture;

only radial force is generated during transmission, and there is no axial force, which requires low axial bearing capacity of the bearing;

The transmission ratio is stable, which can achieve accurate constant ratio transmission.

3) Working Principle

When the active spur gear rotates, its teeth meshed with the teeth of the driven spur gear in turn, and the torque is transmitted

from the driving shaft to the driven shaft through the thrust between the tooth surfaces.

4) Application of Spur Gear

It is suitable for equipment that requires simple transmission structure, such as the transmission mechanism inside the clock,
the power transmission system of small toys, and the transmission parts of household sewing machines.

custom spur gears with rectangular spline

hardened spur gears 220-260 HB

transmission gears with rectangular spline

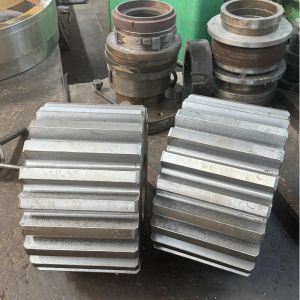

Custom Spur Gears with Rectangular Spline 220-260 HB Hardness Images
